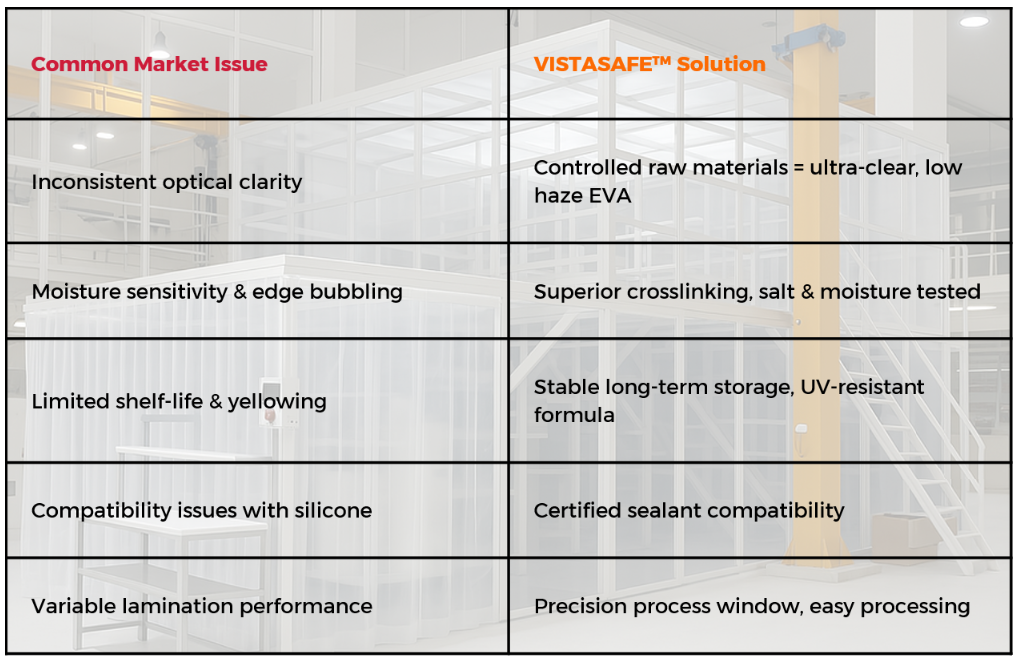

EVA Is Common — But Rarely Reliable
NEXUS BONDFLEX -Standard of EVA
for Laminated Glass.
Developed by NEXUS, BONDFLEX delivers
tested stability, high
optical clarity, and
superior process control.
Why BONDFLEX EVA
Trusted EVA, Engineered by Resin Experts.
- Total Optical Quality:
- Weather Resistance:
- Bond Strength:
- Durability:
- Multi-Layer Lamination Friendly:
- Custom Colors & Thicknesses:
- Tested Compatibility:
Transmittance ≥ 91%, haze ≤ 0.6%
Passed 2,000h accelerated aging +
humidity test
> 55 N/cm after lamination
0% delamination under 60°C + 95% RH for 2 weeks
Excellent flow control
Tinted, white, black available
Dow, Sika, and GE silicone approved
Current Product
BONFLEX is a series of innovative EVA copolymer-base interlayers developed by Nexus IGlass. Specially for the laminated glass industry. The materials are made of world class quality EVA resins and are formulated for ease in processability excellent optical properties, and long term stability.
Durability of BONDFLEX ue to its outstanding adhesive strength to glass, excellent durability against heat, noise pollution, moisture and UV radiation, BONDFLEX offers superior durability and safety aspects to withstand severe environment or outdoor exposure.
Impact resistance: BONDFLEX interlayer shows accordance with DIN EN356 and EN12600,
excellent resistance to impact in
High Performance thermosetting interlayer for architectural and design lamination

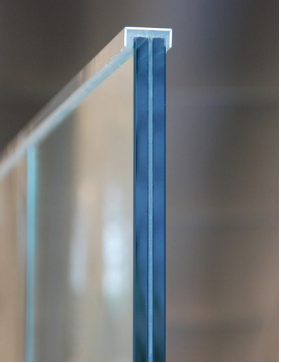

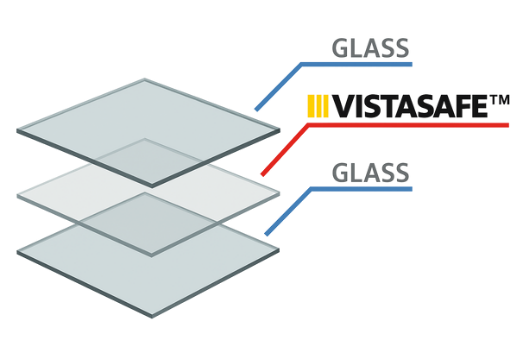

BONDFLEX EVA Interlayer for Laminated Glass
Thermosetting EVA for architectural & design applications
| Series | Model | Features & Application |
|---|---|---|
| Super Clear | VS102 | High clarity, fabric insert friendly, both indoor/outdoor |
| VS103 | Premium tensile and optical properties, low edge flow, architectural grade | |
| VS104 | Specialized for PDLC lamination, excellent clarity and bonding | |

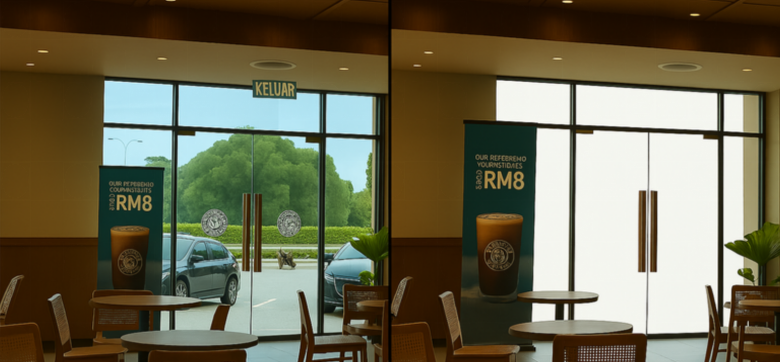

| White Series | VS301 | Winter White for total privacy |
| VS401 | Sandblast effect for satin finish and adjustable privacy | |
| Solar Control | VS601 | Ultra Cool, solar and IR radiation control for energy efficiency |

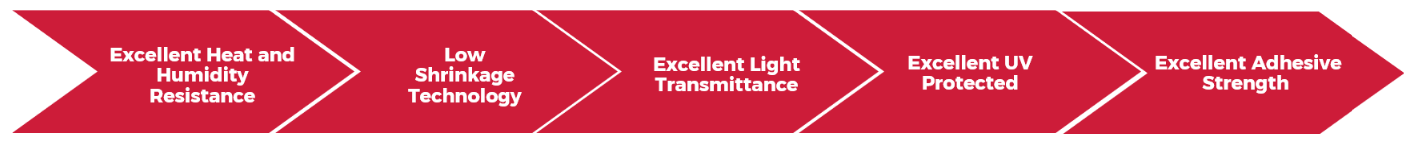

- High adhesive strength to glass
- UV, moisture, and noise resistance
- Excellent optical clarity
-

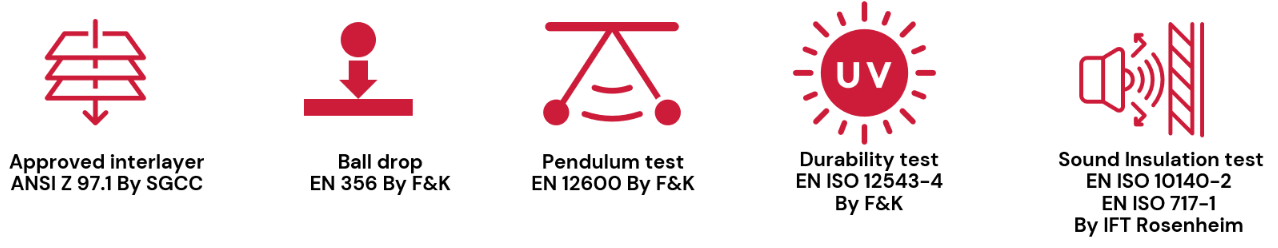

Certified for ANSI Z97.1, EN356, EN12600, EN
ISO 12543-4, EN ISO 10140-2
Statistical Evidence of Superior Performance
| Test Parameter | EVA (VISTASAFE) | PVB |
|---|---|---|
| Water Absorption (%) | 0.2 | 0.5 |
| Adhesive Strength (N/cm) (In long terms test after UV aging) | 90-100 | 50-70 |
| UV Aging Stability (hrs) | Stable after 800 hrs | Degrades after 400 hrs |
| Door Cycle Test (times) | >100,000 cycles | ~50,000 cycles |
BUILT FOR
PERFORMANCE. USED
ACROSS INDUSTRIES.
Use Cases:

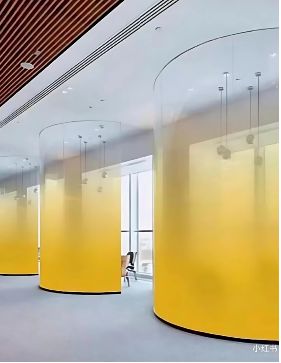

- Architecture - Curtain walls, partitions, glass balustrades
- Smart Glass - PDLC, SPD film lamination

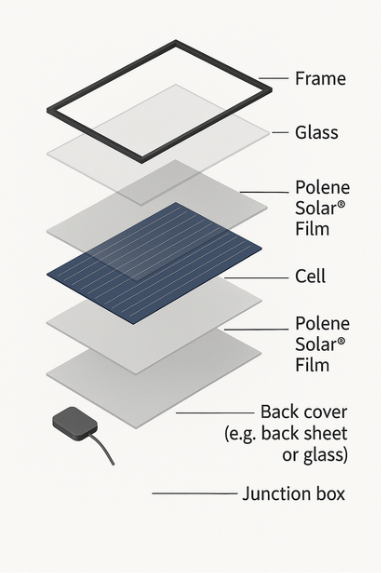

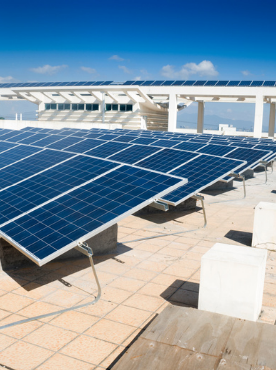

- Solar / PV - BIPV modules, solar control units

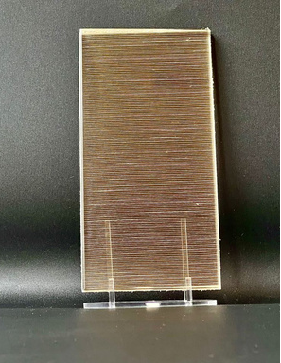

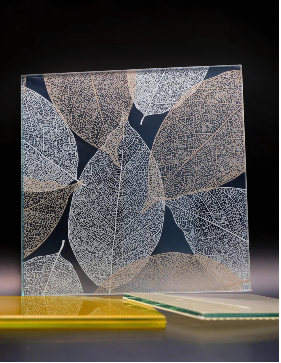

- Decorative
- White/black/printed EVA for interior glass
Certified Global Standards
Tested to Perform. Proven to Last.
- Thailand: TIS 1222 (Thailand Automotive Institute)
- Thailand: TIS 1222 (Thailand Automotive Institute)
- Europe: EN12600, EN356, EN ISO 10140-2, EN ISO 717-1, EN ISO 12543-4 (F&K, IFT Rosenheim)
